WHS-L1

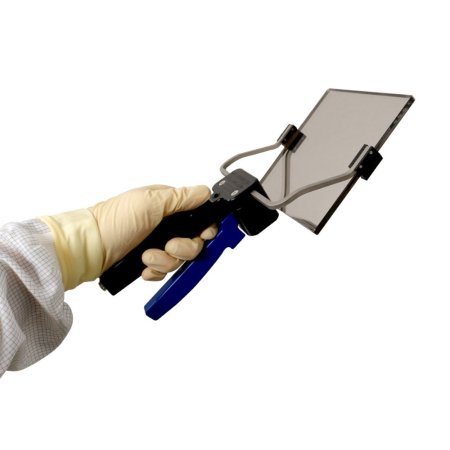

Mask Pick - Side Grip (incl. holder)

MASK SIZE
5X5X0.090
6X6X0.120
6X6X0.250
7X7X0.120
7X7X0.150
9X9X0.120











Automatic Notch Aligner

Automatic-flat-aligner

Manual-notch-aligner

Manual-flat-aligner

Normally-Closed Tangential-Edge Handling
Antistatic Construction With Ground Path
Ergonomic Left/Right hand use
Adjustable grip force
Applications: Transfers, Inspection, Mask Aligners, Cleaning


Portable Wand

Vacuum Wand Set

Vacuum tips

Vacuum Handles




Wafer 3-point mechanical gripper

Wafer Edge Pick

Transfer - Transferring photomasks and reticles manually between storage boxes in the stockroom mask library and production mask boxes like Reticle SMIF Pods (RSP), Nikon cartridge reticle boxes, or Canon cartridge reticle boxes.
Inspection - Performing macro integrity checks during transfer, where mask handling operators visually inspect masks for bar code ID, particles, chrome defects, contamination, or damage to the pellicle frame or film.
Mask aligners - Loading and unloading photolithography mask aligner tools using mask picks.
Cleaning - Handling photomasks during regular cleaning applications such as spot cleaning and full submersion solvent cleans.
Mask shops - Commonly used in the manufacturing production areas and repair of masks in mask shops.

The WHS-L1 is a normally closed (consistent-force) mechanical pick for handling from 5" up to 9" square photomasks from the tangential edge to reduce contamination by eliminating contact with chrome. Advanced gripper manufacturing for longevity, antistatic properties, and general chemical resistance. ISO Class 3.
