WHS-P3
MANUAL FIVE-WAFER LIFT PRESENTER

Wafer Size: 6" 8"







-Type:Manual
-25 slot




Automatic Notch Aligner

Automatic-flat-aligner

Manual-notch-aligner

Manual-flat-aligner

 Scratch Reduction Tool
Antistatic Construction with Ground Path
Safe Edge Handling Lifting Arm
Best Used with WHS-V1-AP4BST vacuum Tip


Portable Wand

Vacuum Wand Set

Vacuum tips

Vacuum Handles


Wafer 3-point mechanical gripper

Wafer Edge Pick

 Scratch reduction - Scratches on wafers can occur during handling and can result in defects and yield loss. Wafer presenters are designed to lift the wafer up from its cassette, allowing operators to access and handle the wafer without having to physically go between the wafers inside the cassette. This eliminates the need for operators to manually manipulate the wafer and reduces the risk of damage or contamination.

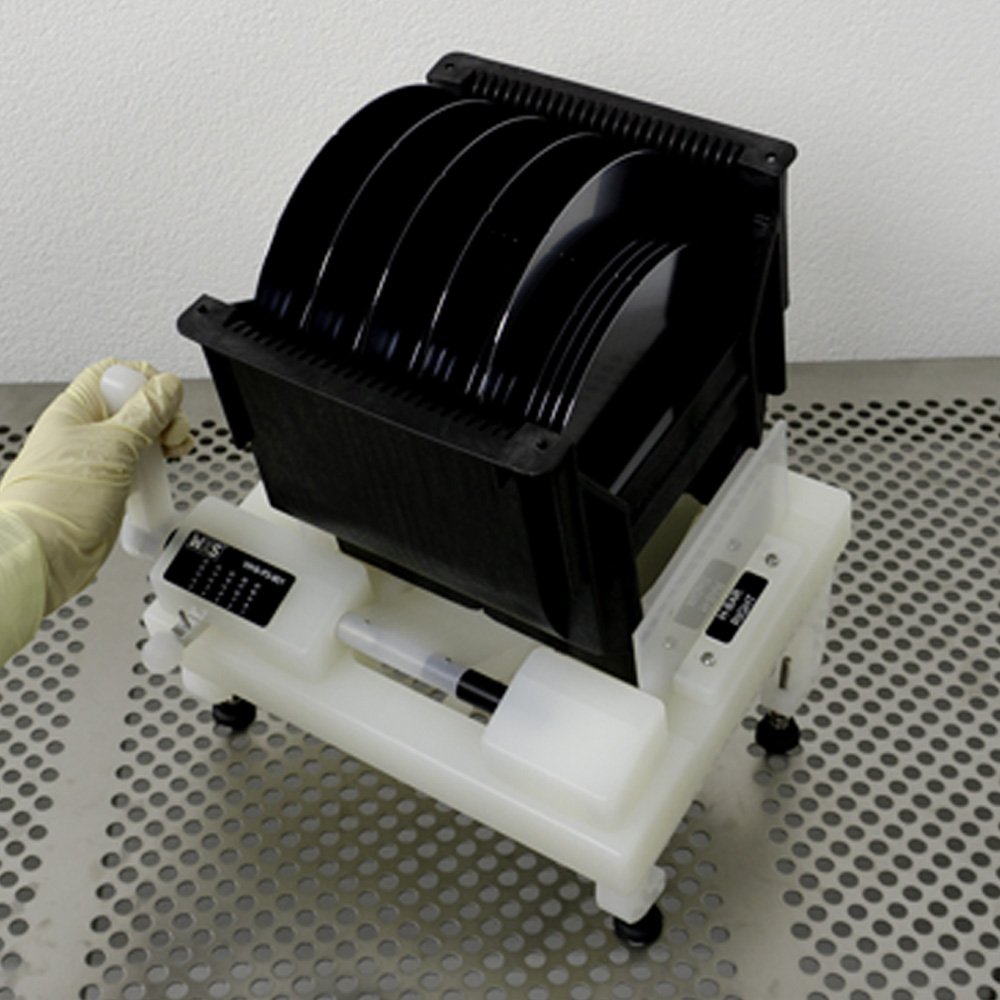

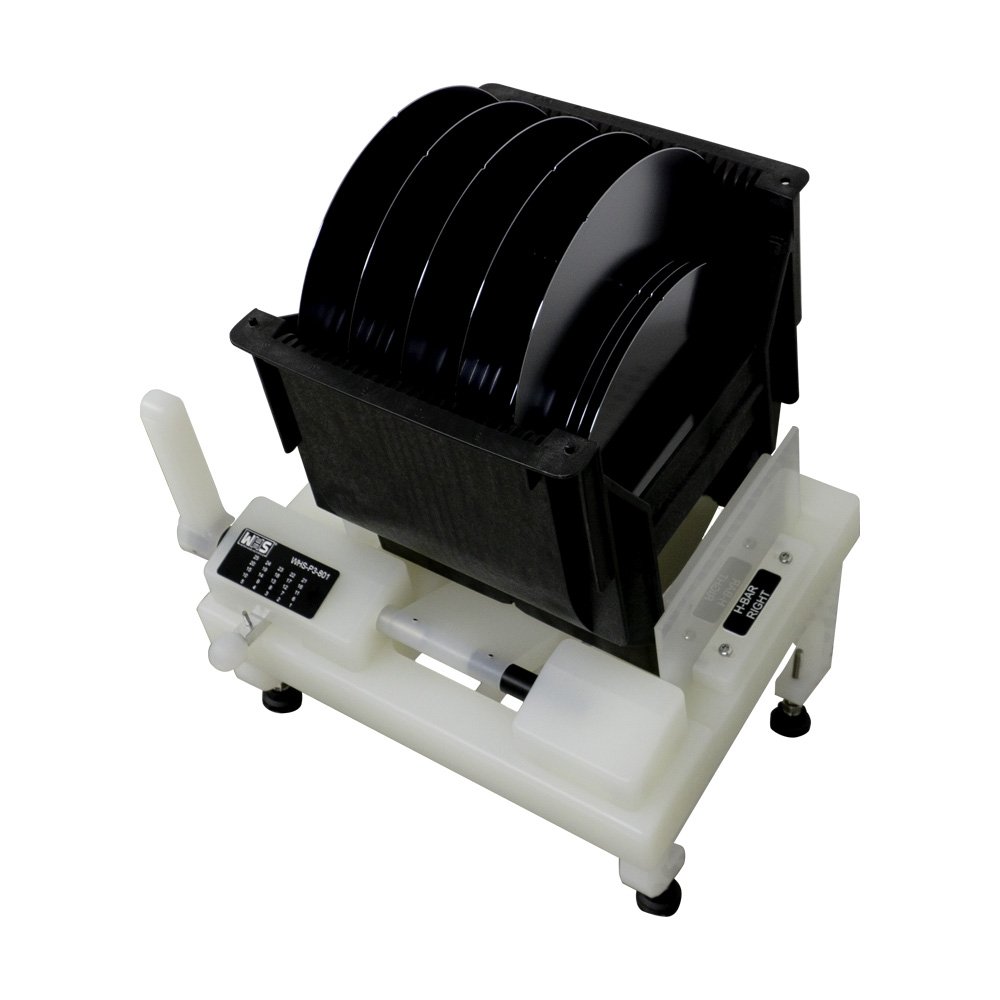

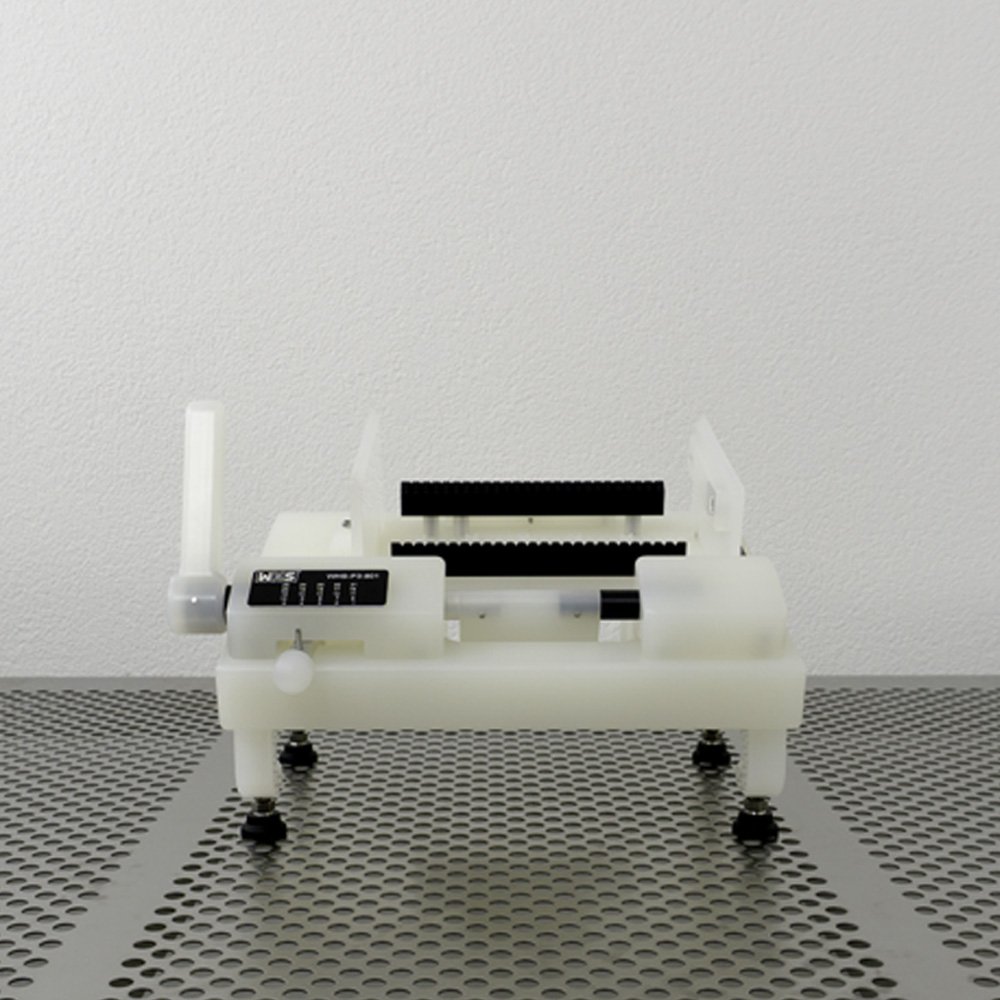

The WHS-P3 is a manual five-wafer lift presenter available in the models: 150 mm (6”) or 200 mm (8”) diameter wafers. Note that the WHS-P3-601 is also compatible with 125 mm wafers. The WHS-P3 simultaneously lifts a five wafer set (set 1 = 1:6:11:16:21 ; set 2 = 2:7:12:17:22 ; etc.) of wafers to an operator for easy removal of a wafer without scratching neighboring wafers in the cassette. Constructed with antistatic materials, the WHS-P3 is built to meet the strict ISO 4 (FS209E Class 10) standards, ensuring the highest level of protection for your wafers.
