Mask Picks
WHS-L2

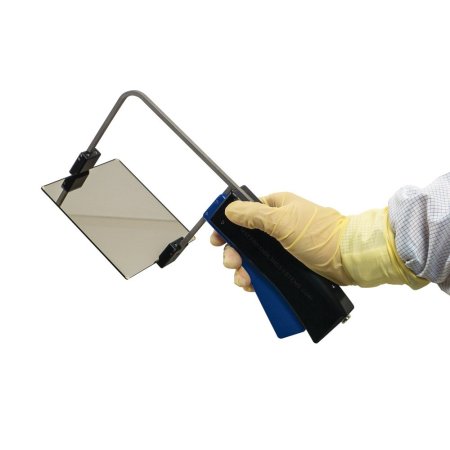

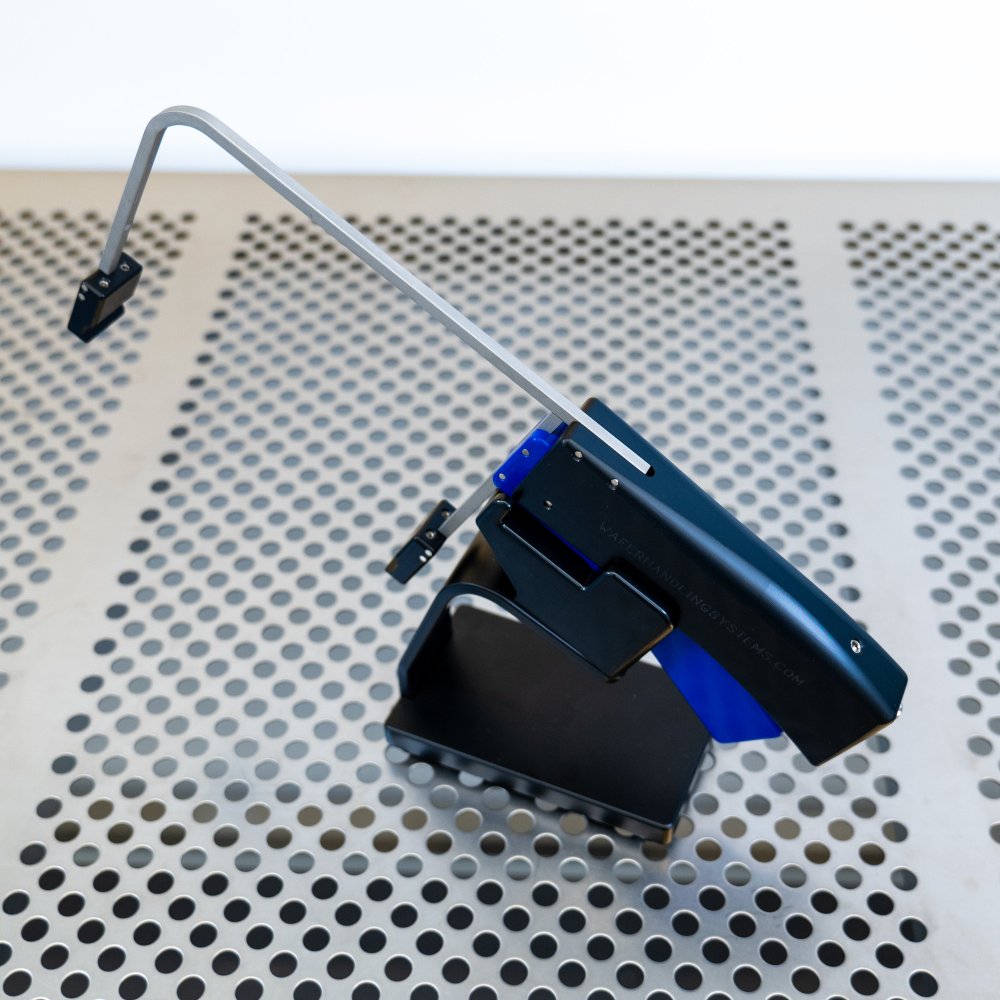

Mask Pick - Horizontal Grip (incl. holder)
MASK SIZE
5X5X0.090
6X6X0.120
6X6X0.250
7X7X0.120
7X7X0.150
9X9X0.120
Antistatic Construction With Ground Path
Ergonomic Left/Right hand use
Adjustable grip force
Applications: Transfers, Inspection, Mask Aligners, Cleaning

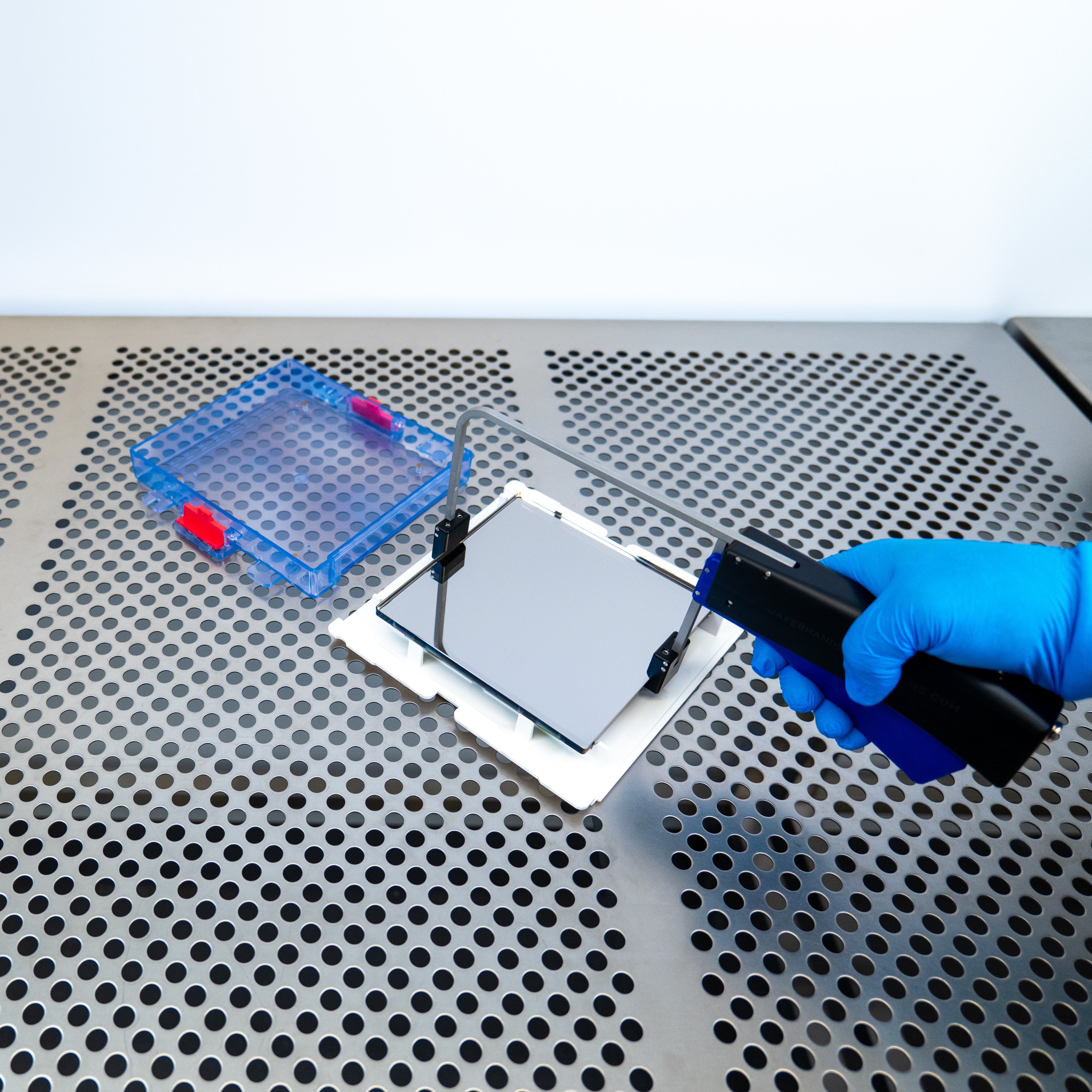

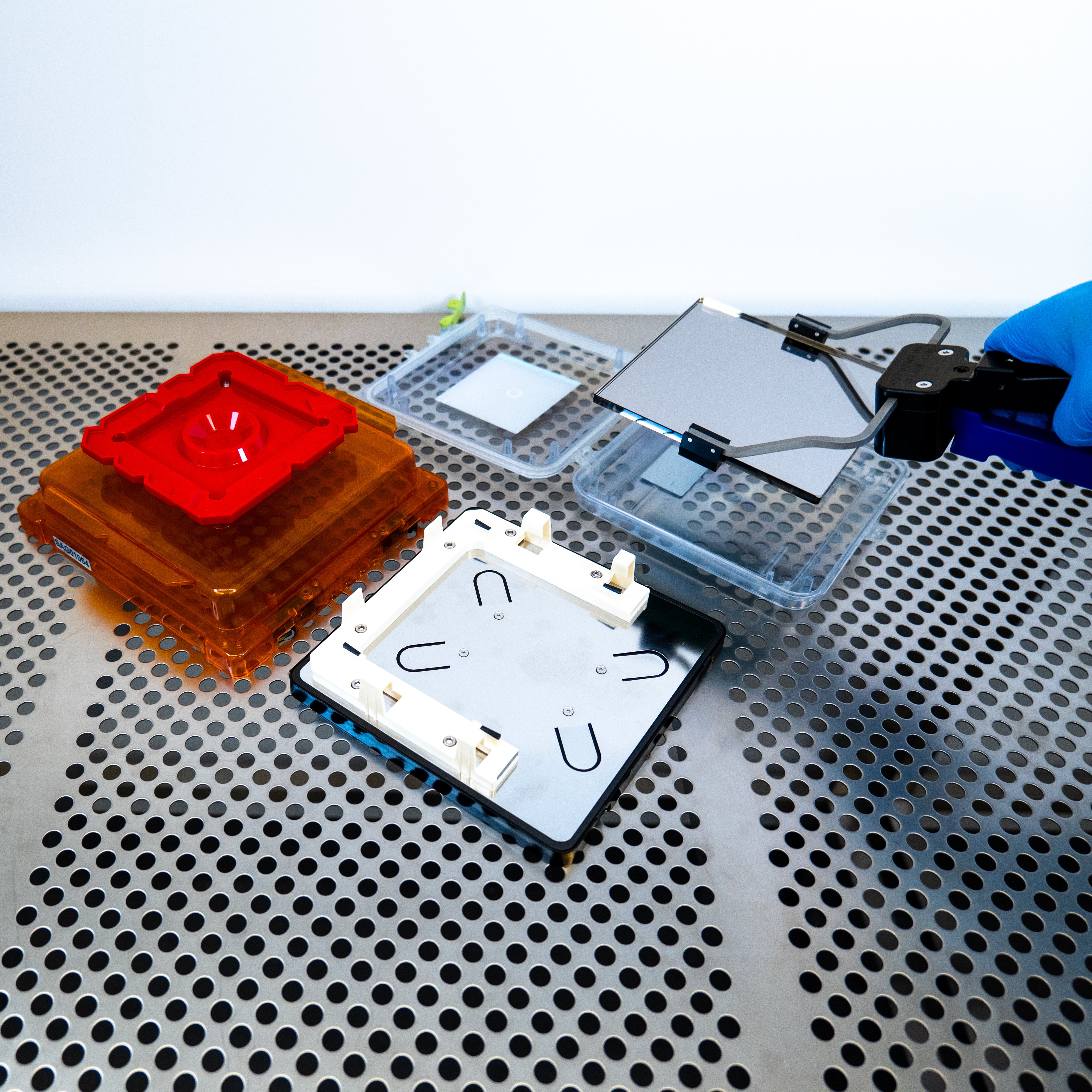

Inspection - Performing macro integrity checks during transfer, where mask handling operators visually inspect masks for bar code ID, particles, chrome defects, contamination, or damage to the pellicle frame or film.
Mask aligners - Loading and unloading photolithography mask aligner tools using mask picks.
Metrology - Loading and unloading microscopes and metrology tools for inspecting masks and reticles using mask picks.
Cleaning - Handling photomasks during regular cleaning applications such as spot cleaning and full submersion solvent cleans.
Mask shops - Commonly used in the manufacturing production areas and repair of masks in mask shops.

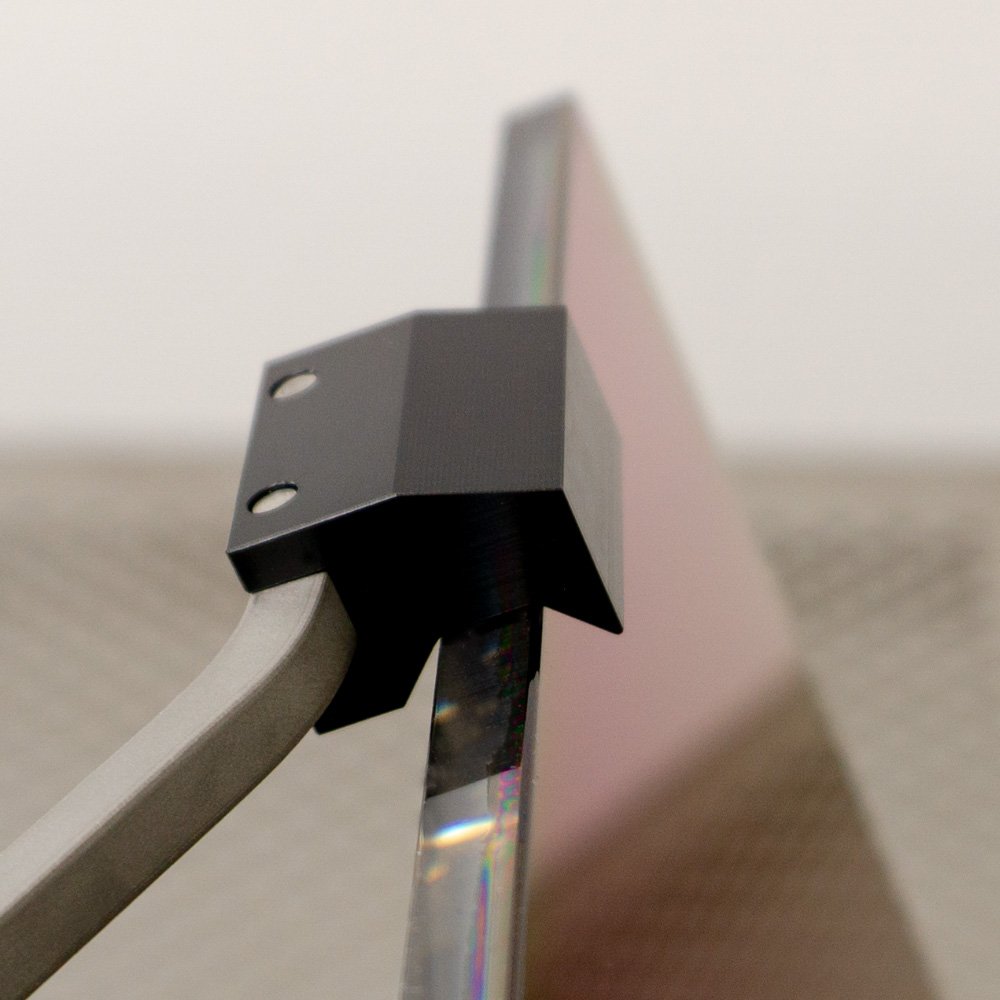

The WHS-L2 is a normally closed (consistent-force) mechanical pick for handling from 5" up to 9" square photomasks from the tangential edge to reduce contamination by eliminating contact with chrome. Advanced gripper manufacturing for longevity, antistatic properties, and general chemical resistance. ISO Class 3.
