WHS-A2

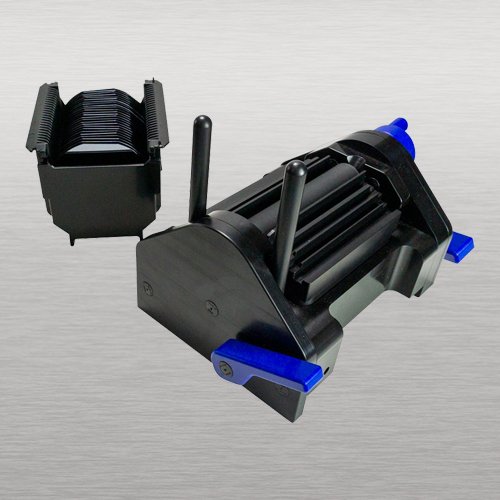

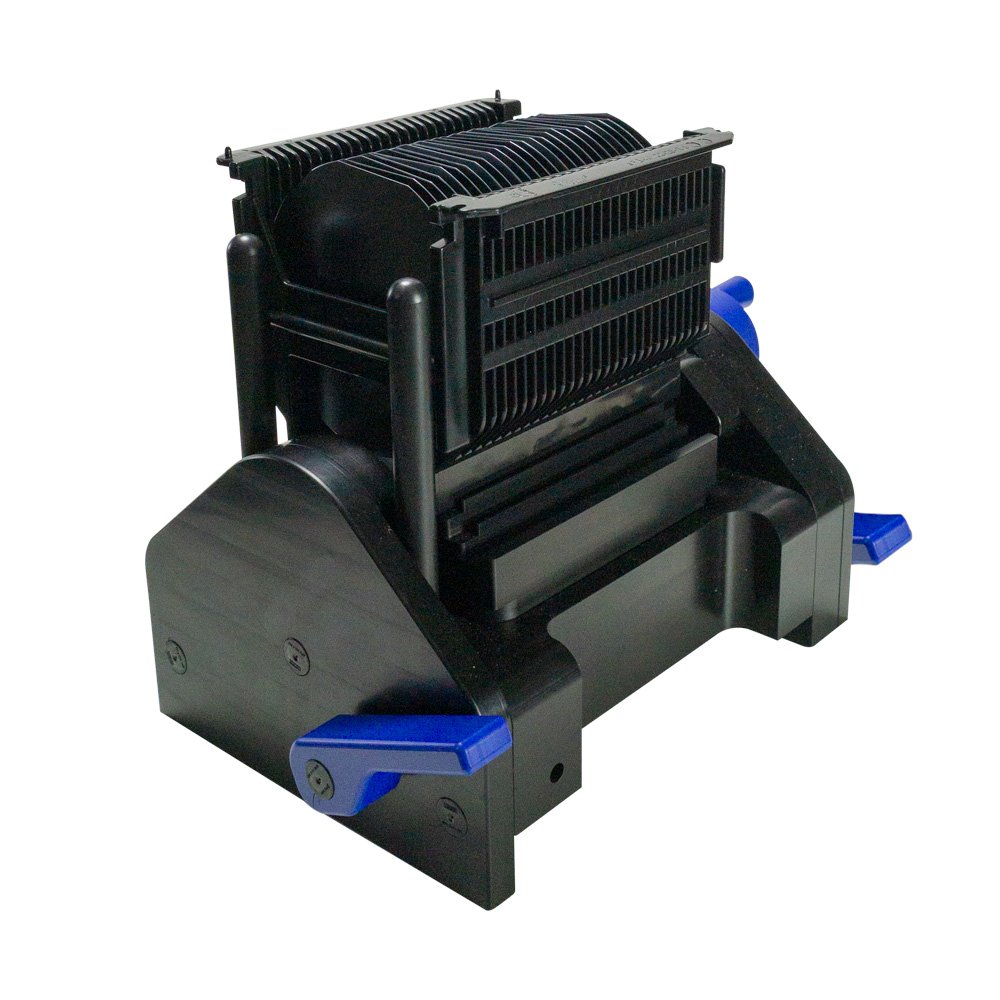

Manual FlatFinder

Wafer Size:3" 4" 6"
Multi size :3"4"5"6"





-Type:Manual
-up to 25 slot

Material
Stage: Anti-Static polyoxymethylene
Roller: Anti-Static Polyurethane/Nylon





Automatic Notch Aligner

Automatic-flat-aligner

Manual-notch-aligner

Manual-flat-aligner




Portable Wand

Vacuum Wand Set

Vacuum tips

Vacuum Handles





Wafer 3-point mechanical gripper

Wafer Edge Pick

Alignment - Wafer flat and notch aligners are used in the semiconductor industry to ensure that wafers are oriented correctly during various processes, such as lithography, deposition, and etching. The flat aligner has a notch or flat that corresponds to the orientation of the wafer's crystal lattice structure. This is critical because the orientation of the wafer affects the performance and functionality of the final semiconductor device



Aluminum Process Cassettes

Aluminum Box Cassettes

Stainless Steel Process Cassettes

Process Cassettes 300mm

Lot integrity - Aligners are also used in the semiconductor industry to aid operators in performing lot integrity checks. By rotating the wafer scribe, which is the identification marking on the wafer's edge, to be visible to the operator, the operator can verify that the correct lot of wafers is being loaded into a production tool. This is an important step in preventing errors and ensuring consistent product quality.


Mask Pick - Side Grip

Mask Pick - Horizontal Grip

Edge inspection - Wafer flat and notch aligners are also used in the semiconductor industry to inspect wafers for edge defects. This macro inspection procedure is usually done under a light source and involves examining the edges of the wafer for any chips, cracks, or other imperfections. This is an important step in preventing wafer breakage during subsequent processing steps, as edge defects can weaken the wafer and cause it to break or fail. By using wafer flat and notch aligners to identify and inspect these defects, operators can take steps to prevent further processing of defective wafers and avoid costly production delays


Manual Reticle SMIF Pod Opener, RSP150

Manual FOUP Opener, 300 mm

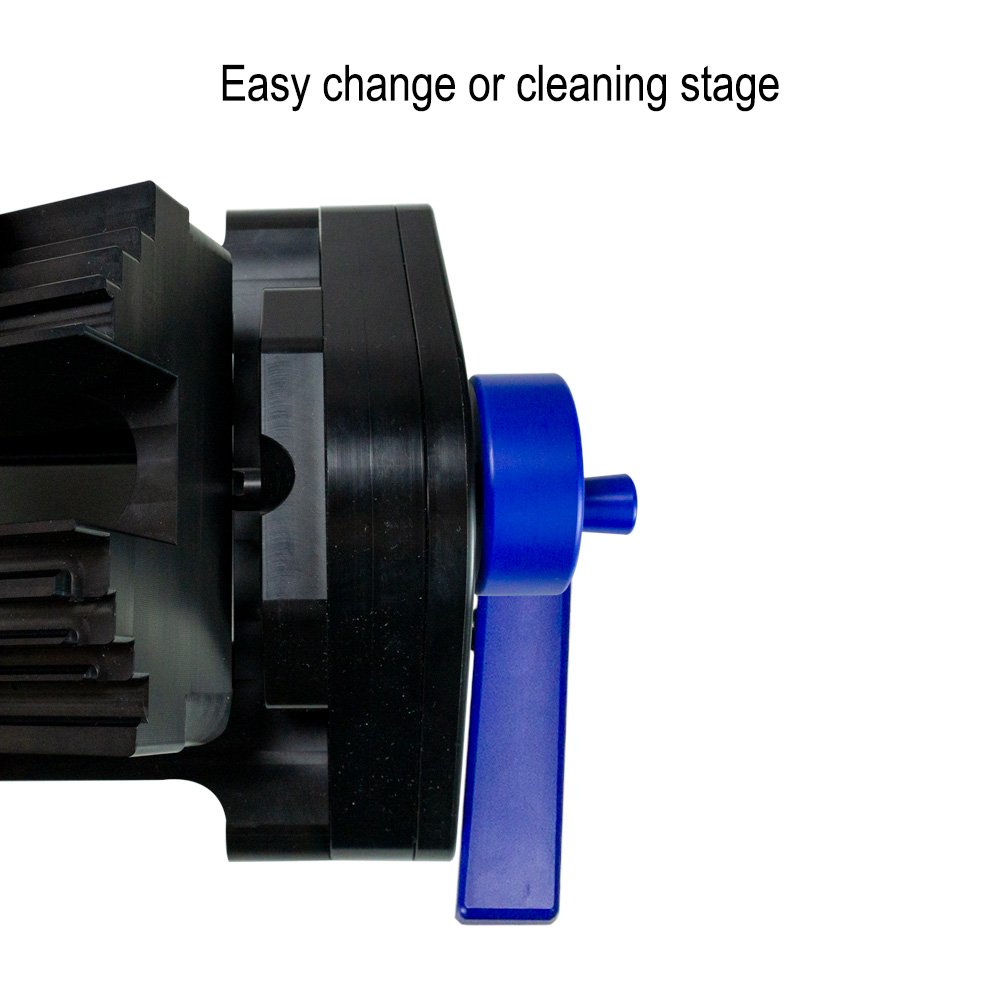

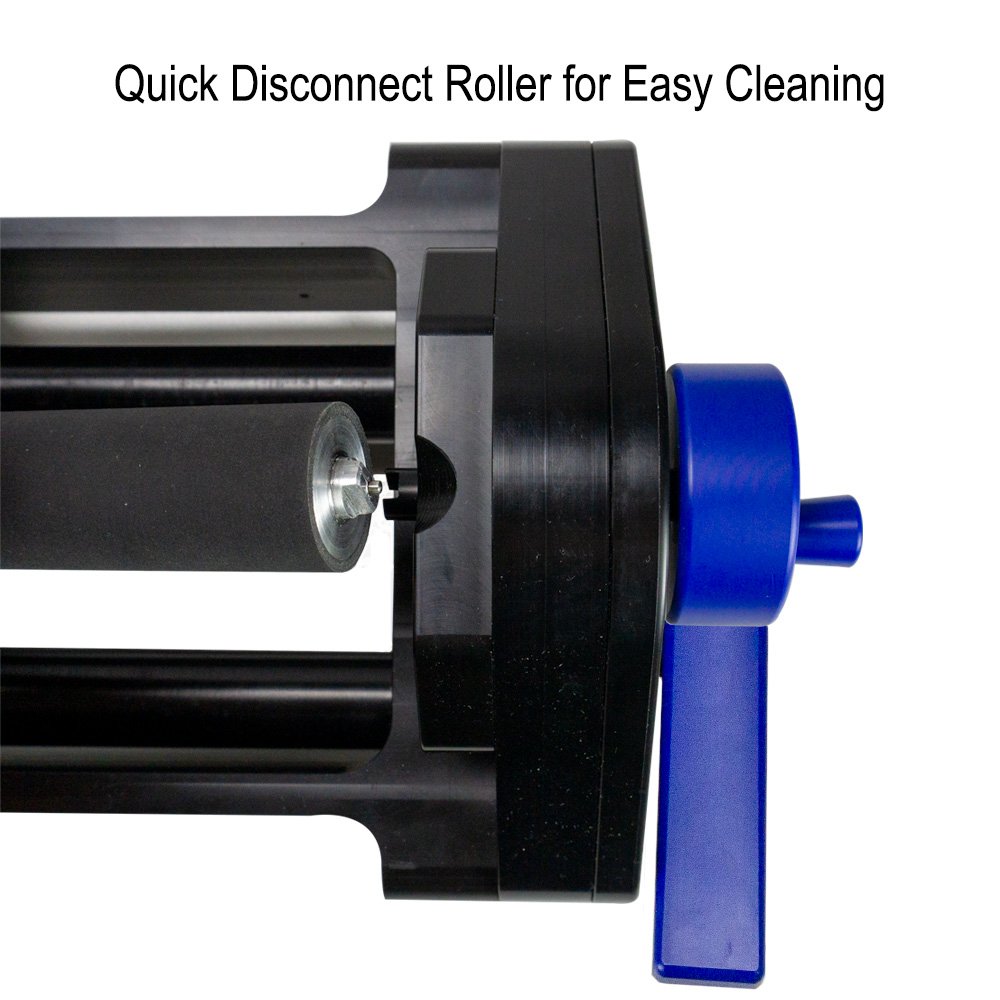

The A2 serie is an advanced technology manual wafer flat aligner for top/bottom alignment of 76 mm to 150 mm wafers. Engineered for InP, GaAs, GaN and SiC compound wafer handling. Features spring loaded stage for gentle engagment of compound wafers with the roller - protecting the wafer edge and increasing yields; Ergonomic spin-knob and lever to reduce operator fatigue. ISO Class 4.


Automatic Wafer Presenter

Manual Five-Wafer Lift Presenter

Manual Single Wafer Presenter

21-manual-wafer-escalators
