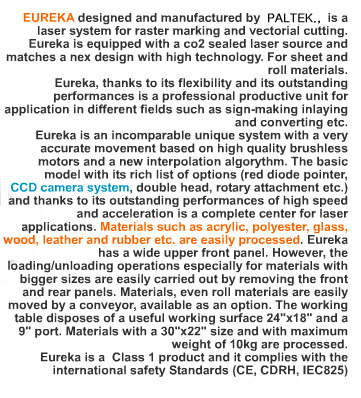

EUREKA  Laser Cutting and Etching System

EUREKA :Laser cutter

C02 SEALED OFF TYPE

1. RASTER MODE(1200 DPI)

2. AUTO MOTORIZED Z AXIS POSITION

3. HONEYCOMB CUTTING TABLE

4. ASSIST GAS FOR CUTTING WITH GAUGE AND MICRO FILTER VA

5. COOLING SYSTEM

6. S/W (ICARO)

specification

working area    610*460*254mm

dimensions    1180*1060*1220mm

Z axis table    254mm

maximum load    20kg

weight    170kg

speed    1100mm/sec

acceleration    2G

accuracy    0.1mm

repeatibility    0.05mm

interface    RS 232/C network

controller    external( WIN95 / WIN98 )

power    ´Ü»ó  220V

input    3kw

compressor air    5 bar ÀÌ»ó

operating temperature    5-35

operating humidity    35-75%

laser source    25W / 50W / 100W

(cooling system)    (AIR / WATER  / WATER)

focal units    2"

focusing system    motorized Z axis

laser guranteed    10000 hours

option

DUAL HEAD

CCD SYSTEM

ROTARY ATTACHEMENT

CONVEYOR



Application;



  FPD, Displays, Woods, Plastics, Teflon, Leathers, Textiles, Fabrics, Model marking, PCBs, IC packages

  Foams
