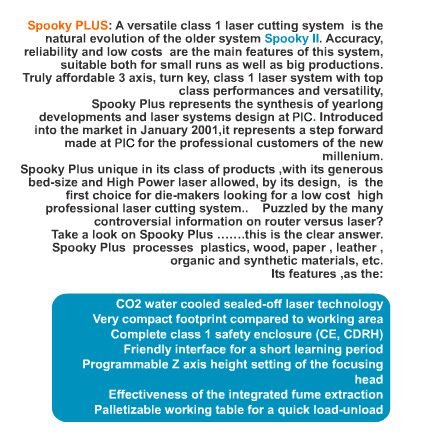

SPOOKY PLUS,  C02 SEALED OFF TYPE Laser cutter

1. ASSIST GAS FOR CUTTING WITH GAUGE AND MICRO FILTER VA

2. CUTTING HEAD WITH 2.5" FOCAL UNIT

3. COOLING SYSTEM (CHILLER)

4. BEAM EXPANDER

5. S/W (ICARO)

specification

working area    800*1100mm

dimensions    1900*2200*1600mm

Z axis run      100mm

weight    750kg

speed    1000mm/sec

axis resolution    0.01mm

repeatibility    0.05mm

precision    0.1mm

interface    RS 232/C

power    Singlre phase 220V

input     kw

compressor air    4 bar ÀÌ»ó

operating temperature    10-35

operating humidity    75% ÀÌ»ó

laser source    50W / 100W/250W

(cooling system)    ( WATER)

focal units    2.5"

laser guranteed    10000 hours

option

RASTER MODE(1200DPI)

CCD SYSTEM

DUAL HEAD

3D S/W

DRILLING SPINDLE

SUCTION PUMP

RED DIODE



Application;



  FPD, Displays, Woods, Steel cutting, Emblems, Plastics, Teflon, Leathers, Textiles, Fabrics, Model marking, Foams









                                                                         JS Engineering Co.

                                                                         Tel 031-479-4211/ 2

                                                                         Fax 031-479-4213

                                                                         Email JSi@JSiTS.com
