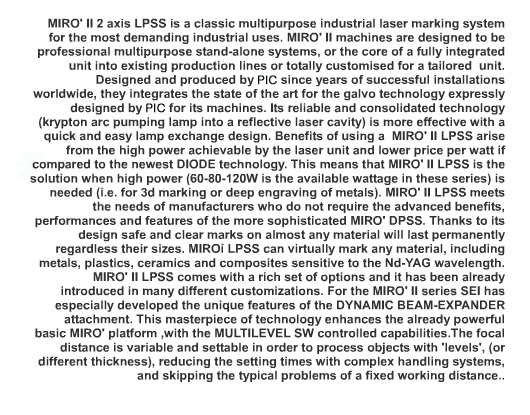

LPSS Nd:YAG  Laser Marking System



Power; 80-120 W, GALVO Head (·¹ÀÌÀú¸¶Ä¿/·¹ÀÌÀú ¿¡Äª±â/·¹ÀÌÀúÄ¿ÅÍ)

Acoustic-optic modulator

Lamp Pumping

Dynamic focus distance(Computer settable)

Working area;33x33 mm, 110x110 mm, 180x180 mm, bigger area on request

Spot size; 40-80 um/ f=100mm, 60-160 um/ f=100mm, 100-250 um/ f=100mm

Speed; 2m/ sec/ f=100 mm, 4m/sec/ f=163 mm, 6m/sec/ f=254 mm

Software;  Windows 98

Cooling; Closed loop chiller



S/W    ICARO

FILE    plt,hpgl,dxf,bmp,pcx

CLOSED CHILLER

OPTION

Z AXIS(300mm)

ROTARY TABLE

X-Y MOVABLE TABLE

ROTARY ATTACHMENT



Application;

  Semiconductor packages, Woods, Metal surfaces, Mold bases, Tools,   Accessories, Cosmetic cases, PCBs









                                                                         JS Engineering Co.

                                                                         Tel 031-479-4211/ 2

                                                                         Fax 031-479-4213

                                                                         Email JSi@JSiTS.com
