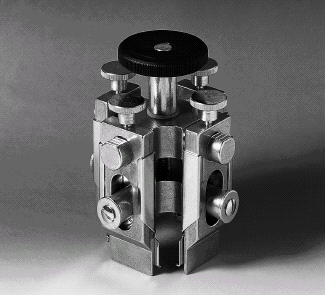

For extraction of PIN-GRID-ARRAYS from sockets with high
extraction force the four side grip claw type is
reccommended.
Order Code: PUL - 2300 - D

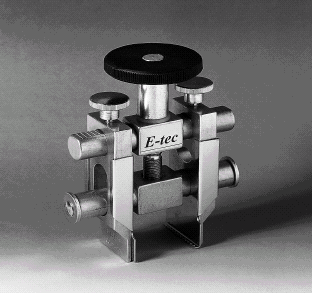

The multi-range tools have spindle actuation and a lifting
mechanism with movable support jaws. Solid aluminum
crossbars ensure even load distribution during the extraction
operation. Their relativaly large lift of approx. 15mm also permits
safe extraction of arrays with bonded-on heat sinks.
Order Code: PUL - 2300 - S



PGA Insertion Tools
Inserting multi-pole PGA circuits into sockets with precision contacts involves the same problems as extracting them.
When inserting a PGA-circuit into a socket, even pressure must be applied to the top of the PGA in order to avoid tilting and
damaging the contact pins.
Approx. 20 Kg of pressure is necessary to press a PGA-circuit into a 300 contact socket. This cannot be done perfectly manually.
Please consult your closest sales office for detailed information and order codes.

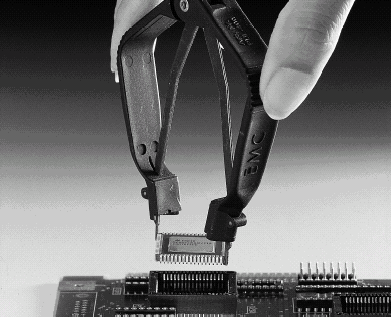

PLCC , SOJ & LCC Universal Extraction Tool
ANTISTATIC



WHY UNIVERSAL ?
It only requires ONE tool for extracting PLCC & SOJ chips of all pin
configurations and LCC 32- and 44-pin chips (E-PROM's). The
same tool can be used for all sockets built according to JEDEC
standards and having diagonal entry slots.
The lower part of the tool has been kept especially narrow, thus
permitting the use of the tool on high density PC boards.
The extraction legs of the tool go slightly under the chip and by
pressing the arms of the tool, the chip is drawn out of the socket.
The plastic arms sit on the side, thus avoiding an extraction force
on the socket itself. This is most important for SMD sockets, which
would otherwise be torn off the board.
THE UNIVERSAL EXTRACTION TOOL IS MADE OF ANTISTATIC PLASTIC !

Order Code: PUL - 100
