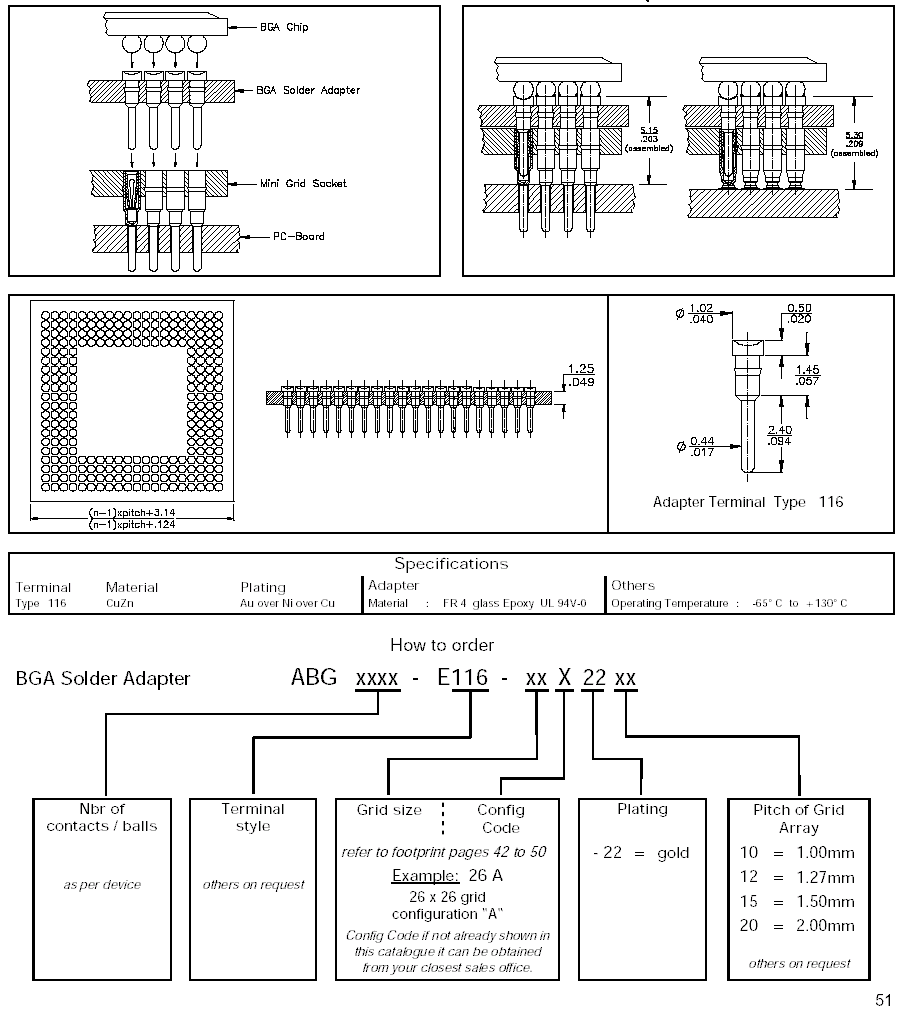

BGA Adapter System Part I

Solder Adapter

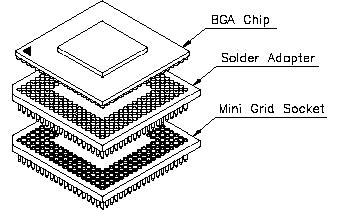

The JSI BGA Adapter System comprises two elements, the BGA solder adapter onto which the BGA chip is soldered (converting the BGA chip to a PGA), and the Mini Grid Socket which is soldered to the PCB. The solder adapter can then be plugged into the Mini Grid Socket ( page 52 ). E-tec offers any pin-out, configuration and grid size. Special terminal designs are possible on request.

Screw lock type -ZIF lever lock type- Knob lock type Solderless compression type ............Footprints: 1.27mm pitch - 1.00mm pitch - 0.80mm pitch -............. special footprints Special info - Tool
