Ultra fine Resistivity 4point Probe Measuring System (K2420:K2400-K2182A)

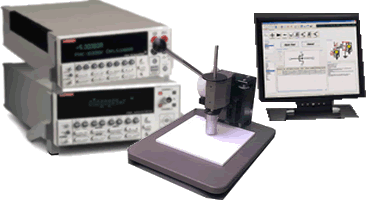

The system includes the probe stand, four point probe head, the test meter (K2420:K2400 , K2182A),GPIB Adapter(K-488) and software,

Range : 100n ohm/square ~10exp7 ohm/square

Current Source K2420:2400 :10pA~1A
Digital Volt meter K2182A : 1nV~10V

Accuracy: <1 %

Operating Temperature Range: 0° to 50°C

Relative Humidity: 90% maximum up to 35°C,
70% maximum up to +50°C

Multi-Height 4point Probe Stand :For Sample :up to 150mm x 150mm ,

4point probe Head,

트리거 케이블,GPIB 어댑터 ,Software

• Reports average resistivity, average sheet resistance
• Employs the improved accuracy and repeatability

용도 :DMM을 통한 low resistivity ,금속박막,PDP-LCD코팅저항 측정
I-V characterization of a material at a specific temperature

Built-in Offset Compensated Volts.
